Z6 series load cells have a maximum load capacity of 5 kg to 1 tonne, a six-wire circuit, can be connected in parallel with corner preadjustment, meet OIML R60 regulations, meet EN 45501's EMC/ESD requirements, and have an explosion-proof version.

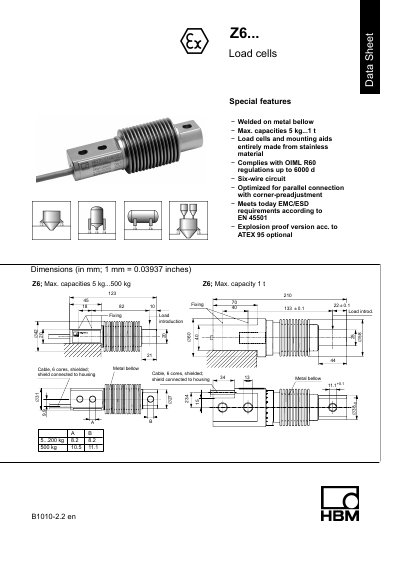

This document provides technical specifications and special features for the HBM Z6 series of load cells. Key characteristics include a welded-on metal bellow, construction entirely from stainless steel, and compliance with OIML R60 regulations. The cells are optimized for parallel connection and meet EMC/ESD requirements according to EN 45501.
| Max. capacities | 5 kg...1t |
|---|---|
| Material | stainless steel |
| Circuit type | Six-wire |
| Accuracy class | Di c3 C3/MI7.5 c4 Ccé |
| Reference excitation voltage | 5 V |
| Nominal temperature range | -10...440 C |
| Protection class | IP 68 |
The Z6 load cell has a maximum capacity ranging from 5 kg to 1 ton.
The nominal range of excitation voltage is between 0.5 V and 12 V.
The service temperature range is -30°C to +70°C.
