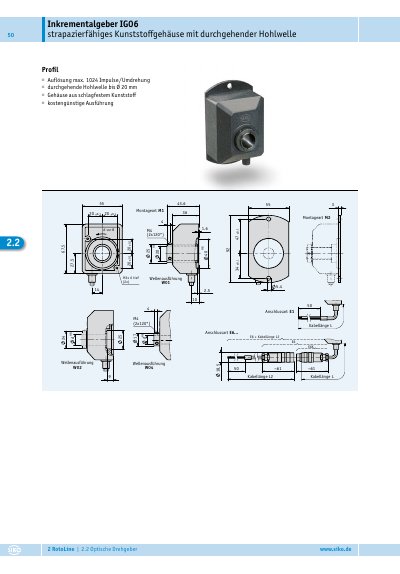

This document provides technical specifications for the SIKO IG06 incremental encoder. It details mechanical features such as a hollow shaft with a maximum diameter of 20 mm, a robust plastic housing, and various mounting options including flange and plate mounts.
The datasheet also outlines electrical characteristics, specifying operating voltages from -30V to +30V DC, output configurations like push-pull and open collector, and signal frequencies up to 25 kHz. It includes tables for ordering codes based on bearing types (sleeve or ball) and shaft diameters. This manual is written in German.
| Resolution | max. 1024 pulses/revolution |
|---|---|
| Hollow shaft diameter | up to 20 mm |
| Maximum speed (W01, W01N) | 5600 min-1 |
| Operating voltage | -30V to +30V DC |
| Maximum pulse frequency | 25 kHz |
| Protection class | IP54 |
The encoder supports flange mounting with a threaded hole and plate mounting.
Options include sleeve bearings (W01) and ball bearings (W02, W04).
