Camozzi EN530-16-P13 Pneumatic Valve Technology Data Sheet

This document describes the features and characteristics of the EN530-16-P13 model, including its operating pressure, flow rate, construction, function, materials, connections, operating temperature, applicable media, voltage, current, etc.

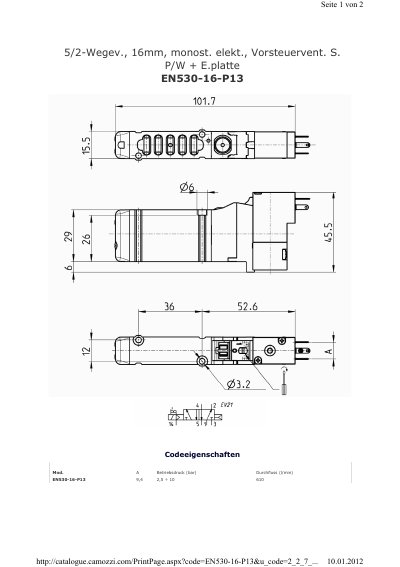

Camozzi EN530-16-P13 Pneumatic Valve Technology Data Sheet - cover page
Brand
Camozzi
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
93 KB
Published
11 July, 2012
Updated
28 September, 2023
MD5 checksum
10210C9D097C6BDEF79A7AD9E309B22E
PDF
Camozzi EN530-16-P13 Pneumatic Valve Technology Data Sheet PDF

About this manual

This document provides technical specifications and operating parameters for the Camozzi model EN530-16-P13. It is a 16mm, monostable, electrically operated 5/2-way directional control valve featuring a pilot-operated design and an integrated front plate. This manual is written in German.

What's inside

  • Code Eigenschaften
  • Allgemeine Kenngrößen der Serie
  • Bauart
  • Funktion
  • Werkstoffe
  • Anschlüsse

Specifications

Valve TypePilot-operated slide valves (Vorgesteuerte Schieberventile)
Way Configuration5/2-way, 5/3-way CC, CO, CP
Body MaterialAluminum (AL)
Sealing MaterialNBR, PU
Operating Temperature Range-5°C to +50°C

Frequently asked questions

What is the maximum operating temperature for this valve?

The maximum operating temperature is 50 degrees Celsius.
