SODECA DCMA DCMA 540 545 technology data

The document describes the features and characteristics of various models of motor fans produced by Dassler GmbH, including materials, temperature range, motor type, corrosion-resistant coating, etc.

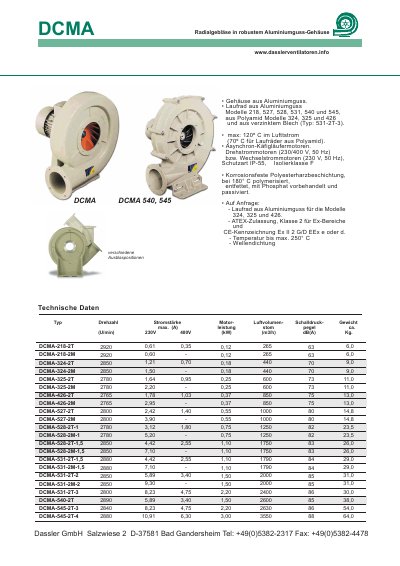

SODECA DCMA DCMA 540 545 technology data - cover page
Brand
SODECA
Document type
Product Leaflet
Language
German
Pages
4
File format
PDF
File size
779 KB
Published
11 July, 2012
Updated
29 September, 2023
MD5 checksum
772A09C19775CBD9D437BA0872BFC065
PDF
SODECA DCMA DCMA 540 545 technology data PDF

About this manual

This document provides technical details for the Dassler DCMA series of radial blowers housed in robust aluminum castings. The models listed include various sizes such as 218, 324, 325, 426, 527, 528, 531, and specifically the 540 and 545 variants. This manual is written in German.

What's inside

  • Technical Data
  • Acoustic Properties
  • Dimensions
  • Performance Curves
  • Mounting Positions

Specifications

Max Airflow1208 m3/h
Motor TypeAsynchronous Cage Induction Motors
Protection ClassIP-55
Insulation ClassF

Frequently asked questions

What is the maximum air volume flow for these radial blowers?

The maximum stated air volume flow is 1208 cfm, though this limit applies only to impellers made of polyamide.

What are the available motor voltage options for these units?

The motors are available as three-phase motors rated at 230/400 V or single-phase alternating current motors rated at 230 V.
