The document provides product specifications for Kombirollen | Combined Bearings. It includes information on the dimensions, load capacity, and features of different models of Kombirollen.

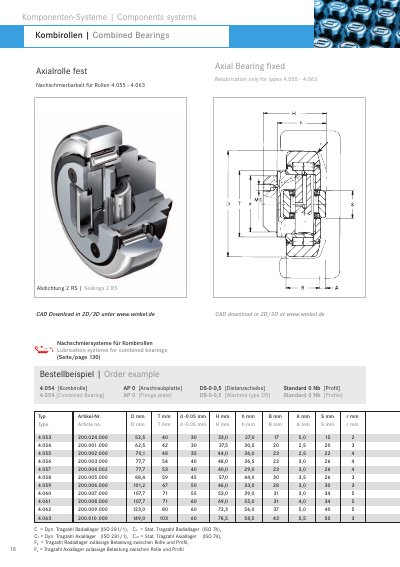

This document provides technical data for WINKEL Combined Bearings (Kombirollen), specifically types 4.053 through 4.063. It lists detailed dimensional specifications and ordering examples for the bearings and their associated flange plates (Anschraubplatten).
The datasheet includes dynamic and static load capacities for both radial and axial bearings, maximum rotational speeds, and weights. It also specifies that relubrication is only applicable for types 4.055 to 4.063. This manual is written in German.
| Relubrication availability | Relubrication only for types 4.055 - 4.063 |
|---|---|
| Dynamic load capacity radial bearing (4.053) | 5.23 kN |
| Static load capacity radial bearing (4.053) | 32.0 kN |
| Max. rotational speed (4.053) | 800 rpm |
| Weight (4.053) | 0.46 kg |
| Dynamic load capacity radial bearing (4.063) | 54.02 kN |
| Max. rotational speed (4.063) | 450 rpm |
Relubrication is only available for types 4.055 through 4.063.
The maximum rotational speed for type 4.053 is 800 rpm.
