WINKEL AP A-Q AP 6-Q Equal technology data

WINKEL Kombirollen with Anschraubplatten are ready-made system components for screwable connections between construction and guide profiles. All flange plates include a welded Kombirolle. Axial adjustment is possible with DS type washers. All flange plates are in corrosion protected design. Material: S235 JR. Special designs are available on request.

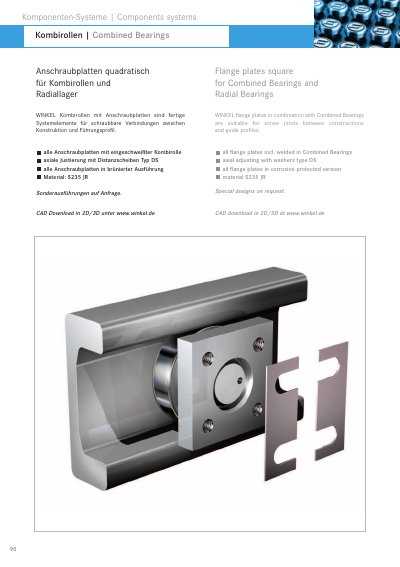

WINKEL AP A-Q AP 6-Q Equal technology data - cover page
Brand
WINKEL
Document type
Product Leaflet
Language
German
Pages
6
File format
PDF
File size
242 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
95B5D82D31BA57B081721AA6BE06A89F
PDF
WINKEL AP A-Q AP 6-Q Equal technology data PDF

About this manual

The document describes WINKEL combined bearings equipped with square flange plates designed for screw joints between constructions and guide profiles. These systems are available in corrosion-protected versions made of material St 35 JR and include options for axial adjustment using DS washers.

Detailed specifications are provided for various models, including AP A-Q through AP 6-Q series. The data covers different metric thread sizes (M6 to M16), profile types (Standard and PRO), dimensions such as height and weight, and corresponding article numbers for the bearings and associated washers. This manual is written in German.

What's inside

  • Components systems
  • Combined Bearings
  • Flange plates square
  • Axial adjustment
  • Material specifications
  • AP A-Q Series
  • AP 2-Q Series
  • AP 3-Q Series
  • Article numbers

Specifications

MaterialSt 35 JR
Profile TypeStandard and PRO

Frequently asked questions

What is the stated purpose of WINKEL flange plates with combined bearings?

They are suitable for screw joints between constructions and guide profiles.

What material is used for all flange plates in this product line?

The material used is $235 JR.
