ROTOFLUX S10-300-03F S15-301-03F Equal technology data

This file is the ROTOFLUX_2010 fitting catalog, mainly including single-pass union S10-S50.

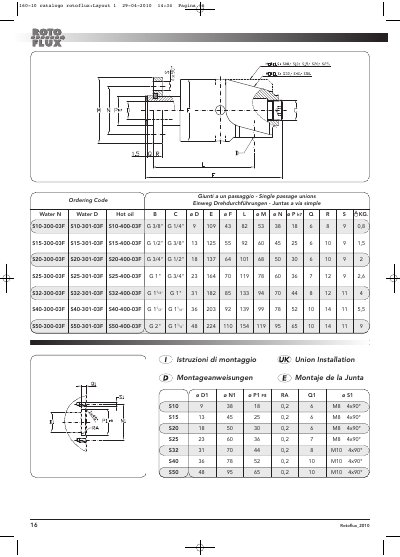

ROTOFLUX S10-300-03F S15-301-03F Equal technology data - cover page
Brand
ROTOFLUX
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
68 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
30EA800ED2BDB8E973AF709026A4A66E
PDF
ROTOFLUX S10-300-03F S15-301-03F Equal technology data PDF

About this manual

This document provides a list of models for Rotoflux single passage unions, covering sizes from S08 to S50. It includes specific part numbers such as the S10-300-03F and S15-301-03F mentioned in the title.

The text contains detailed ordering codes corresponding to different port sizes (from 3/8" to 2") and lists associated dimensions including length, weight, and screw specifications for each model variant.

What's inside

  • Models
  • Ordering Code
  • Single passage unions
  • Dimensions
  • Screw specifications
  • Port sizes

Frequently asked questions

What are the stated dimensions for the S10-300-03F union?

The S10-300-03F union has a dimension of 3/8".

What is the required bolt size for the S25-300-03F union?

The S25-300-03F union requires M8 4x90° bolts.

Download PDF (68 KB)
