SITEMA KRG/KRGP Safety Lock Technical Data Sheet

This document is about SITEMA Safety Locks TI-S10 technical data sheet, which introduces the product's functional characteristics, application range and other information.

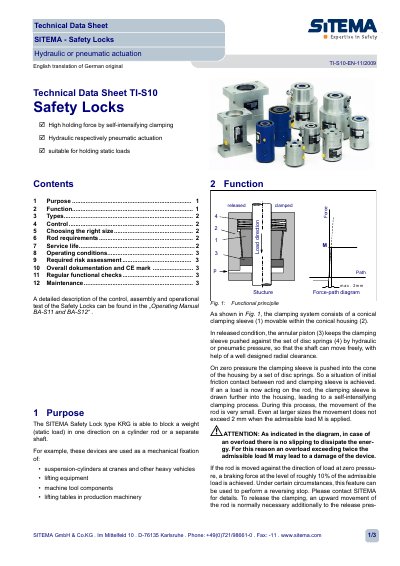

SITEMA KRG/KRGP Safety Lock Technical Data Sheet - cover page
Brand
SITEMA
Document type
Datasheet
Language
English
Pages
3
File format
PDF
File size
285 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
62271FC9FEF7531FED6CE0BD494F1912
PDF
SITEMA KRG/KRGP Safety Lock Technical Data Sheet PDF

About this manual

This document provides technical specifications for the SITEMA Safety Lock types KRG and KRGP. These devices are designed to block a weight in one direction on a cylinder rod or separate shaft, suitable for holding static loads in applications such as cranes, lifting equipment, and machine tools. The locks utilize hydraulic or pneumatic actuation with self-intensifying clamping mechanisms.

What's inside

  • Purpose
  • Function
  • Types
  • Control
  • Choosing the right size
  • Rod requirements
  • Service life
  • Operating conditions
  • Maintenance

Specifications

Actuation typeHydraulic or pneumatic
FunctionBlock a weight in one direction on a cylinder rod or separate shaft
Hydraulic oil standardDIN 51524-2
Ambient temperature range0 - 60°C
Service life (holding full load)At least 1 million times

Frequently asked questions

What is the difference between Type KRG and Type KRGP?

Type KRG is designed for hydraulic actuation, while Type KRGP is designed for pneumatic actuation.

What happens if forces exceed twice the admissible load?

Forces exceeding 2xM may cause damage to the device because there is no slipping to dissipate energy in case of overload.
