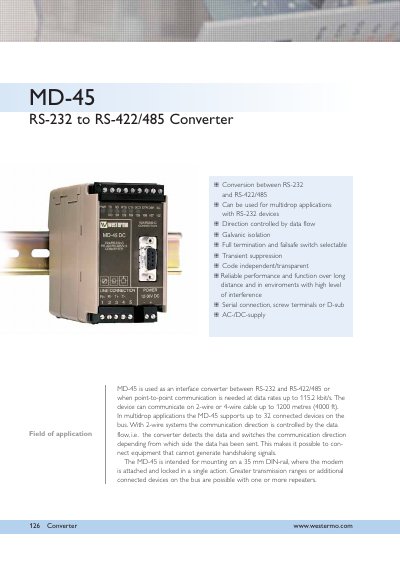

The MD-45 is an interface converter between RS-232 and RS-422/485, used for point-to-point communication at data rates up to 115.2 kbit/s. It can communicate on 2-wire or 4-wire cable up to 1200 meters (4000 ft). In multidrop applications, it supports up to 32 connected devices on the bus. With 2-wire systems, the communication direction is controlled by the data flow, allowing connection of equipment that cannot generate handshaking signals. The MD-45 is designed for mounting on a 35 mm DIN-rail, with easy attachment and locking of the modem. Greater transmission ranges or additional connected devices on the bus are possible with repeaters.
The Westermo MD-45LV is an interface converter designed to bridge communication between RS-232 devices and RS-422 or RS-485 networks. It supports data rates up to 115.2 kbit/s and can operate over distances of up to 1200 meters using either 2-wire or 4-wire cables.
| Data rate (RS-232) | Up to 115.2 kbit/s |
|---|---|
| Data rate (RS-422/485) | Up to 115.2 kbit/s |
| Maximum transmission distance | 1200 metres (4000 ft) |
| Multidrop bus capacity | Up to 32 connected devices |
| Connection type | Detachable screw terminal |
The device supports data rates up to 115.2 kbit/s.
It supports up to 32 connected devices on the bus.
