ZIEHL MS 220 C Thermistor Relay Technical Data

This document describes the features and characteristics of the Kaltleiter-Relais Typ MS product from ZIEHL industrie-elektronik, including its appearance, dimensions, electrical parameters, etc.

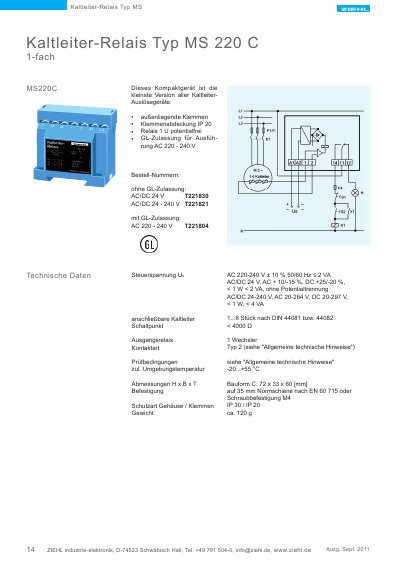

ZIEHL MS 220 C Thermistor Relay Technical Data - cover page
Brand
ZIEHL
Category
Other Electronics
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
649 KB
Published
11 July, 2012
Updated
29 September, 2023
MD5 checksum
7A6B4FA0EFE4C664FBEB06293E575562
PDF
ZIEHL MS 220 C Thermistor Relay Technical Data PDF

About this manual

This document provides technical specifications for the ZIEHL MS 220 C, a compact thermistor relay (Kaltleiter-Relais). It is described as the smallest version of all thermistor switching devices, featuring external terminals and a terminal cover with IP 20 protection. This manual is written in German.

What's inside

  • Technische Daten
  • Bestel-Nummern
  • Steuerspannung
  • anschlielsbare Kaltleiter
  • Schaltpunkt
  • Ausgangsrelais
  • Kontaktart
  • Prufbedingungen
  • zul. Umgebungstemperatur
  • Abmessungen

Specifications

Dimensions (Form C)72 x 33 x 60 mm
Protection ClassIP 30 / IP 20
Mounting35 mm Normschiene or Screw M4

Frequently asked questions

What are the stated dimensions for Bauform C?

The dimensions for form C are 72 x 33 x 60 millimeters.
