Voith SR-F 230 Technology Data Parts List

This document is a PDF file, mainly about the assembly drawing of Safeset SR-F 230

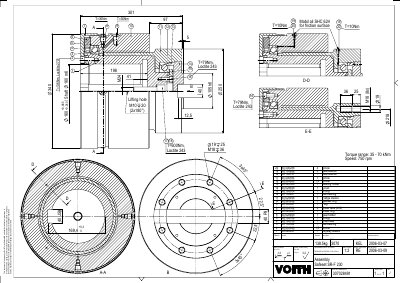

Voith SR-F 230 Technology Data Parts List - cover page
Brand
Voith
Category
Industrial Supply
Document type
Parts List
Language
English
Pages
1
File format
PDF
File size
140 KB
Published
11 July, 2012
Updated
30 September, 2023
MD5 checksum
33A0520DCF05F7490635984F3AE782A9
PDF
Voith SR-F 230 Technology Data Parts List PDF

About this manual

This document provides a detailed parts list for the Voith SR-F 230 technology unit. It includes specific assembly instructions, such as torque values for various screws and the use of specific sealants like Loctite 243 and 247.

The list details individual components including screws, seal washers, bearings, and shear tubes, along with their corresponding part numbers and quantities. Technical specifications for the assembly include a torque range of 35 - 70 kNm and a speed of 750 rpm.

What's inside

  • Assembly
  • Parts List
  • Torque Specifications
  • Sealants
  • Bearing Holder
  • Shear Tube
  • Flange Sleeve
  • Surface Quality

Specifications

Torque range35 - 70 kNm
Speed750 rpm

Frequently asked questions

What is the required torque range for assembly?

The specified torque range is 35 - 70 kNm.

What is the maximum operating speed of the SR-F 230?

The unit operates at a speed of 750 rpm.
