U3 is a high precision, high durability tensile/compressive force transducer with integrated lateral force compensation and a compact design. It has a force range of 0.5 to 100 kN and flanged ends on both sides.

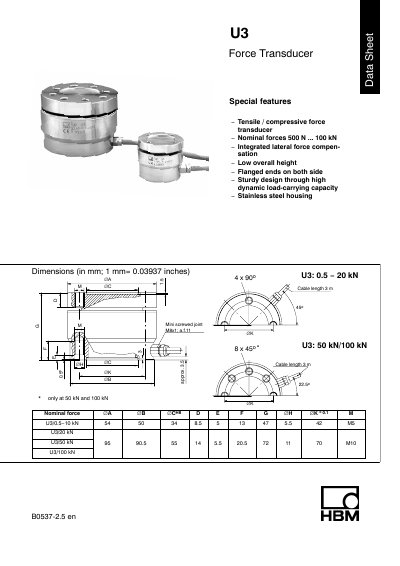

This document is a datasheet for the HBM U3 Force Transducer, designed for measuring tensile and compressive forces. It features integrated lateral force compensation, a low overall height, and a sturdy stainless steel housing. The transducer is available in nominal force ranges from 0.5 kN to 100 kN.
| Nominal force range | 0.5 kN to 100 kN |
|---|---|
| Accuracy class | 0.2 |
| Reference excitation voltage | 5 V |
| Operating temperature range | -30 to +85 °C |
| Degree of protection | IP65 |
| Cable length | 3 m |
The U3 transducer is available in nominal forces ranging from 500 N (0.5 kN) up to 100 kN.
Yes, the U3 transducer features integrated lateral force compensation.
The accuracy class for the U3 transducer is 0.2.
