This document describes the technical specifications and characteristics of the B 4 S(E) ultrasonic sensor, including information such as the HF-Signal/RF-Signal spectrum and electrical impedance.

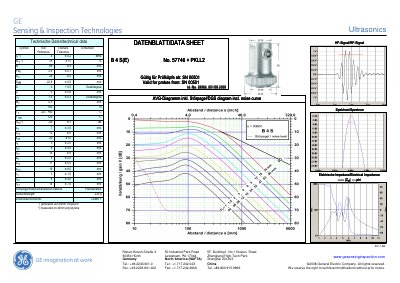

This datasheet provides technical specifications for the B4S(E) ultrasonic probe, including frequency, bandwidth, dimensions, and electrical impedance. It details the probe's performance characteristics such as near field length, focal width, and working temperature range, with all values referenced to steel calibration blocks.
| Test Frequency | 4.0 MHz |
|---|---|
| Near Field Length | 88 mm |
| Focal Width | 29 mm |
| Transducer Dimensions | 20 x 20 mm |
| Beam Angle | 8.0 degrees |
| Working Temperature Range | -40 to +60 °C |
| Short Duration Temperature | 120 °C |
| Transducer Material | Piezokeramik |
| Weight | 230 g |
| Connector | LEMO 1 |
| Thread Size | M 40 x 2 |
The test frequency is 4.0 MHz.
The working temperature range is from -40 to +60 °C.
No, the connecting socket is not suitable for use under water.
The order number for the protective membrane is 53756.
