RC3 is a stainless steel self centering rocker column load cell with complete hermetic sealing from FLINTEC. It is a perfect fit for use in harsh industrial environments.

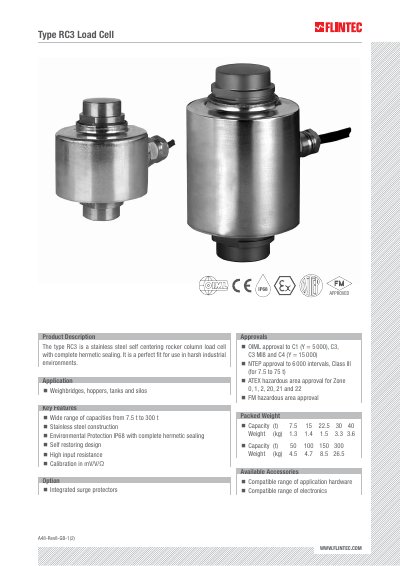

The document describes the Type RC3, a stainless steel self-centering rocker column load cell designed with complete hermetic sealing for use in harsh industrial environments such as weighbridges, hoppers, tanks, and silos.
Key features include a wide range of capacities from 7.5t to 300t, an IP68 environmental protection rating, and self-restoring design. The load cell is available with options for integrated surge protectors and comes with compatible application hardware and electronics.
| Material | Stainless steel 17-4 PH (1.4548) |
|---|---|
| Protection Rating | IP68 / IP69K |
| Capacity Range | 7.5 t to 300 t |
| Operating Temperature | -40...+80 °C |
| Excitation Voltage | 5-15 V |
| Input Resistance | 1150 + 50 Ω |
It is designed for use in weighbridges, hoppers, tanks, and silos.
The maximum capacity ranges from 7.5 t to 300 t.
The operating temperature range is -40...+80 °C.
