2IF7282-1EB1 is a 80M centrifugal fan of Wissmann brand

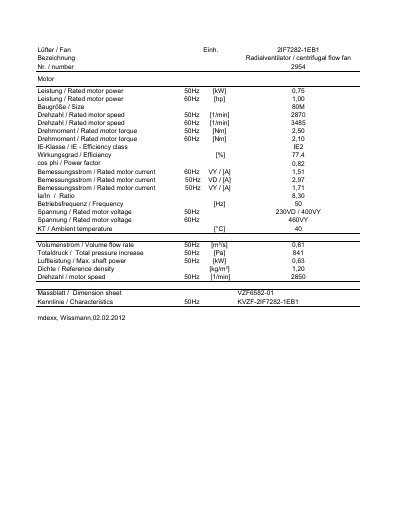

This document is a technical datasheet for the Wissmann model 21F7282-1EB1 radial or centrifugal flow fan. It provides key performance data including rated motor power of 0.75 kW at 50 Hz and 1.00 hp at 60 Hz, along with efficiency class IE2.
The datasheet details electrical characteristics such as voltage ratings (230V/400V), current consumption, and power factor. It also specifies mechanical performance metrics like volume flow rate of 0.61 m³/s and total pressure increase of 841 Pa at 50 Hz. This manual is written in German.
| Rated motor power (50Hz) | 0.75 kW |
|---|---|
| Rated motor power (60Hz) | 1.00 hp |
| Size | 80M |
| Rated motor speed (50Hz) | 2870 [1/min] |
| Efficiency class | IE2 |
| Power factor | 0.82 |
| Rated motor current (50Hz VD) | 2.97 A |
| Volume flow rate (50Hz) | 0.61 m³/s |
The rated motor power is 0.75 kW at 50Hz.
The rated motor speed is 3485 1/min at 60Hz.
The maximum shaft power is 0.63 kW at 50Hz.
