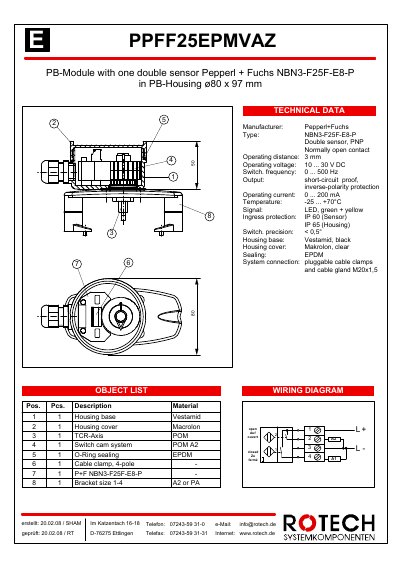

This document provides technical data and wiring diagram for the Pepperl+Fuchs NBN3-F25F-E8-P double sensor. The sensor has an operating distance of 3mm, operating voltage of 10-30V DC, switch frequency of 0-500Hz, operating current of 0-200mA, temperature range of -25 to +70°C, and ingress protection of IP60. The sensor features green and yellow LED signal indication. The housing is made of Vestamid and Makrolon materials, with EPDM sealing and pluggable cable clamps and M20x1.5 system connection.
This document provides technical specifications for a PB-Module manufactured by Rotech. The module houses one double sensor of type Pepperl + Fuchs NBN3-F25F-E8-P within an 80 x 97 mm housing.
Key electrical and mechanical parameters include an operating voltage of 10...30V DC, a switch frequency up to 500 Hz, and an operating distance of 3 mm. The sensor features PNP output with short-circuit proof and inverse-polarity protection. This manual is written in German.
| Type | Double sensor, PNP |
|---|---|
| Contact type | Normally open contact |
| Operating distance | 3 mm |
| Operating voltage | 10...30V DC |
| Switch frequency | 0...500 Hz |
| Output type | short-circuit proof, inverse-polarity protection |
| Operating current | 0...200mA |
| Temperature range | -25 ... +70°C |
| Switch precision | < 0,5° |
| Ingress protection (Sensor) | IP 60 |
| Ingress protection (Housing) | IP 65 |
The device operates on a direct current voltage between 10 and 30 volts.
The stated operating distance for this double sensor is exactly 3 mm.
