This document is the product manual of safety valve 06217. It introduces the material, application scenario, working temperature, interface type and other information of the product.

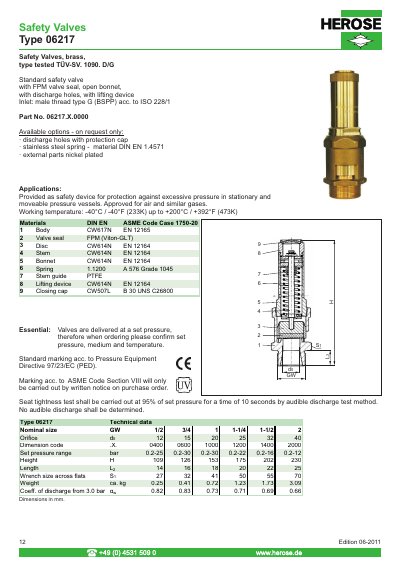

The document describes the HEROSE Type 06217, a standard safety valve made of brass with an FPM valve seal. It is designed as a protection device against excessive pressure in stationary and moveable pressure vessels for air and similar gases. The valve features an open bonnet, discharge holes, and a lifting device.
| Material Body | CW617N EN 12165 |
|---|---|
| Valve seal material | FPM (Viton-GLT) |
| Working temperature range | -40°C / -40°F up to +200°C / +392°F |
| Inlet thread type | male thread type G (BSPP) |
The spring is made of 1.1200 A576 Grade 1045 H.
It serves as a safety device to protect stationary and moveable pressure vessels from excessive pressure.
The valve is approved specifically for air and similar gases.
The valve can operate at temperatures up to +200°C / +392°F (473K).
