The UAS3V3 electronic measuring switch is an electronic measuring device with digital display, 4 switch outputs, and 1 analog output. It features an 8-digit 14-segment LCD display with a bargraph and trend display. The device is suitable for OEM applications, hydraulic and pneumatic systems, test bench and apparatus construction, and heavy industry.

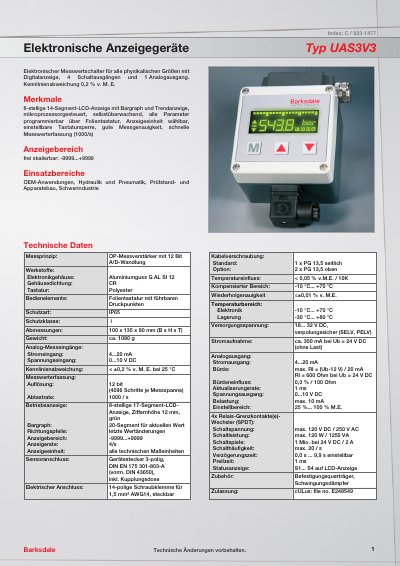

The Barksdale UAS3V3 is an electronic indicating device designed for measuring all physical quantities with a digital display. It features an 8-digit 14-segment LCD with a bargraph and trend display, controlled by a microprocessor. The device includes 4 switching outputs and 1 analog output, making it suitable for OEM applications, hydraulics, pneumatics, and heavy industry. This manual is written in German.
| Display | 8-digit 14-segment LCD with bargraph and trend display |
|---|---|
| Display range | -9999...+9999 |
| Operating temperature | -10°C... +70 °C |
| Storage temperature | -30°C... +80 °C |
| Supply voltage | 18... 32 V DC |
| Current consumption | ca. 350 mA at 24 V DC |
| Analog input current | 4...20 mA |
| Switching voltage | max. 120 V DC / 250 V AC |
| Switching power | max. 120 W / 1250 VA |
| Dimensions | 100 x 135 x 80 mm (W x H x D) |
| Weight | ca. 1080 g |
| Protection class | IP65 |
It uses an OP measurement amplifier with 12-bit A/D conversion.
The linearity deviation is less than 0.2% of the measured value.
Yes, it includes 4 relay limit contacts (SPDT).
