83380 series 2/2 way valves DN15 to DN150, for neutral gaseous and liquid fluids, driven by external media, through membrane valves, nominal pressure PN10/PN16, operating pressure 0 to 10 bar.

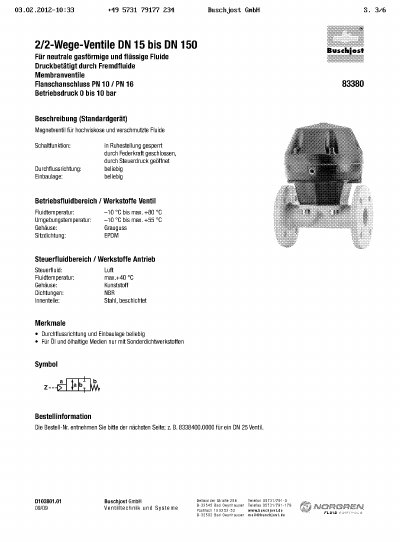

This document provides technical specifications for the Buschjost 83380 series of 2/2-way valves. These membrane valves are designed for neutral gaseous and liquid fluids and are operated by external fluid pressure. The standard device includes a solenoid valve for high-viscosity and dirty fluids, with a normally closed switching function. This manual is written in German.
| Nominal size range | DN 15 bis DN 150 |
|---|---|
| Operating pressure | 0 bis 10 bar |
| Fluid temperature | -10 °C bis max. +80 °C |
| Housing material | Grauguss |
| Seal material | EPDM |
| Control fluid | Luft |
| Switching function | in Ruhestellung gesperrt |
The valves operate at a maximum pressure of 10 bar.
The fluid temperature must not exceed 80 °C.
The DN 150 valve weighs a maximum of 104.0 kg.
