This is an information manual for the MULTI-H205 pump, which includes technical parameters, flow rate, head, power and other information

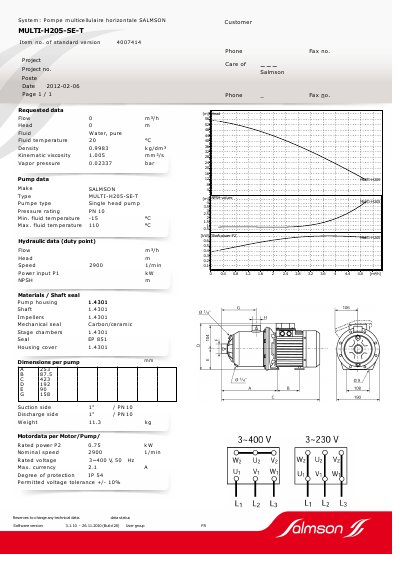

This document provides technical specifications for the Salmson MULTI-H205-SE-T, a single-head horizontal multistage pump designed for pumping pure water. The unit is rated with a pressure class of PN 10 and operates at a nominal speed of 2900 1/min.
| Make | SALMSON |
|---|---|
| Type | MULTI-H205-SE-T |
| Pump type | Single head pump |
| Pressure rating | PN 10 |
| Min. fluid temperature | -15 °C |
| Max. fluid temperature | 110 °C |
| Nominal speed | 2900 1/min |
| Rated power P2 | 0.75 kW |
| Degree of protection | IP 54 |
The pump can handle a maximum fluid temperature of 110 °C.
The motor has a rated power of 0.75 kW.
