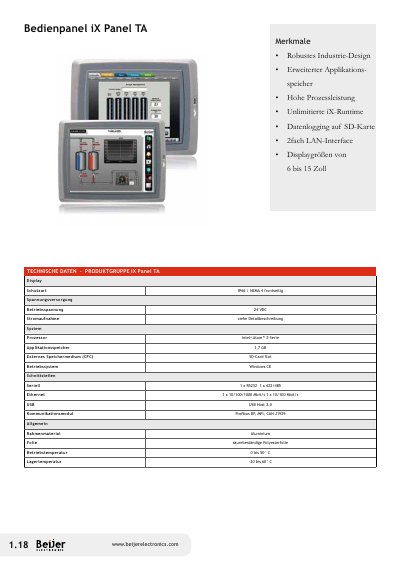

iX Panel TA is an operator panel with robust industrial design and high processing power. It features extended application storage, unlimited iX-Runtime, data logging on SD card, dual LAN interface, and display sizes ranging from 6 to 15 inches.
This document provides technical data for the Beijer Electronics iX Panel TA series of industrial touch panels. The range includes models with display sizes ranging from 6.5 to 15 inches, featuring robust IP66/NEMA4 front protection and running on Windows CE.
Key specifications vary by model size. All units utilize resistive touch technology and support various communication protocols including Profibus DP, MPI, CAN J1939, RS232/422/485, Ethernet, and USB Host 2.0. Power requirements are 24 VDC, with maximum current draw increasing from 1.3A for the TA70 to 2.1A for the TA150. This manual is written in German.
| Operating Voltage | 24 VDC |
|---|---|
| Protection Class | IP66 / NEMA4 frontseitig |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Processor | Intel Atom Z-Serie |
| Application Memory (TA70) | 1.7GB |
| Display Resolution (TA70) | 640 x 480 pixels |
| Display Resolution (TA100) | 800 x 600 pixels |
| Display Resolution (TA150) | 1024 x 768 pixels |
| Touch Technology | Resistiv Touch |
| Ethernet Interface (TA70) | 1x 10/100/1000 Mbit/s, 1x 10/100 Mbit/s |
| Max Current (TA70) | 1.3A |
| Max Current (TA150) | 2.1A |
The operating voltage is 24 VDC.
Supported protocols include Profibus DP, MPI, CAN J1939, RS232/422/485, Ethernet, and USB Host 2.0.
The front side has a protection class of IP66 / NEMA4.
