SOFIMA MDM 101/102 Medium Pressure Inline Filter Data Sheet

This document describes the features and characteristics of the MDM series medium pressure inline filters, including their applications, connections, maximum working pressure, and materials.

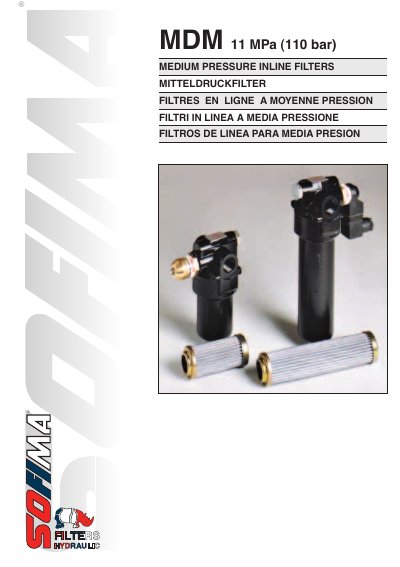

SOFIMA MDM 101/102 Medium Pressure Inline Filter Data Sheet - cover page
Brand
SOFIMA
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
6
File format
PDF
File size
171 KB
Published
11 July, 2012
Updated
29 September, 2023
MD5 checksum
7D16526A77CE6F0008F5FA8FCD76EF68
PDF
SOFIMA MDM 101/102 Medium Pressure Inline Filter Data Sheet PDF

About this manual

This document provides technical specifications for the SOFIMA MDM series of medium pressure inline filters. Designed for both stationary and mobile applications, these filters operate effectively up to a maximum working pressure of 11 MPa (110 bar). The series features a compact design with light weight, allowing for versatile installation in hydraulic lines.

What's inside

  • Description
  • Technical Data Filter Elements
  • Collapse Pressures
  • Installation Details
  • Clogging Indicators
  • Dimensional Layout
  • How to Order
  • Replacement Cartridges

Specifications

Max. working pressure11 MPa (110 bar)
Max. test pressure16 MPa (160 bar)
Burst pressure30 MPa (300 bar)
Working temperature-25 + +110°C
Port sizes1/2" BSP-NPT-SAE
Flow rates8 + 75 L/min
Head and bowl materialAnodized aluminium

Frequently asked questions

What is the maximum working pressure for the MDM series?

The maximum working pressure is 11 MPa (110 bar).

What are the standard seal materials?

The standard seal material is Buna-N, with FKM available on request.
