This PDF file is a technical manual for a KTR Kupplungstechnik GmbH pump carrier, including the carrier's dimensions, weight, material, installation instructions, etc.

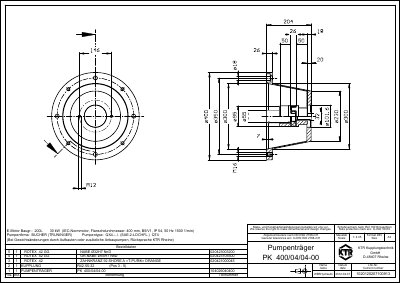

This document provides technology data for the Bucher PK 400/04/04-00 pump mounting kit. It includes general tolerances according to DIN ISO 2768-mH and notes that dimensional and design changes are reserved by the manufacturer.
The kit is designed for a specific electric motor configuration (E-Motor Bauqr.: 200L 30KkW) with a flange diameter of 400 mm. The document lists the included components, which consist of pump carriers and couplings manufactured by KTR.
The E-Motor has a rated power of 30 kW.
The flange diameter for the E-Motor is 400 mm.
