micro-gloss is a glossmeter released by BYK-Gardner GmbH. It has the characteristics of high accuracy, easy operation and multi-function.

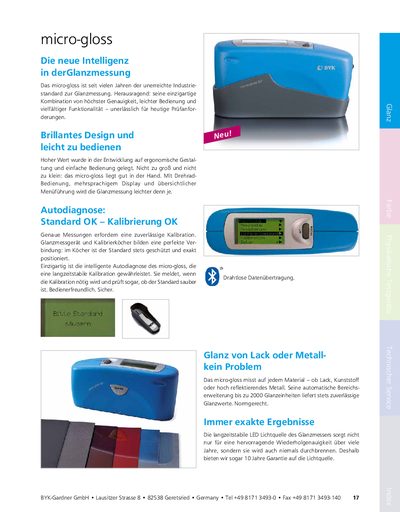

The document introduces the micro-gloss series by BYK-Gardner as an industry standard for gloss measurement. It emphasizes the device's unique combination of high accuracy, ease of use via a scroll wheel interface, and versatile functionality suitable for modern inspection requirements. Key features include a long-lasting LED light source with a 10-year warranty and intelligent autodiagnosis to ensure calibration stability. This manual is written in German.
| Measurement Range (20°) | 0-2000 GU |
|---|---|
| Measurement Range (60°) | 0-1000 GU |
| Measurement Range (85°) | 0-160 GU |
| Measurement Time per Geometry | 0.5 seconds |
| Statistics Range | 2 - 99 measurements |
| Memory Capacity | 999 measurements |
| Operating Temperature | 10-40 °C (60 - 104 °F) |
| Relative Humidity | up to 85%, non-condensing |
| Dimensions | 155 x 73x48 mm (6,1 x2,9x 1,9 in) |
| Weight | 0.4 kg (0.9 lbs) |
The manufacturer offers a 10-year warranty on the LED light source.
The menu can be switched to German, English, French, Italian, Japanese, Polish, Portuguese, Russian, and Spanish.
