This document is the instruction sheet for the SP0715 Vari-Flo multiport valve product, which introduces the product's characteristics and usage methods.

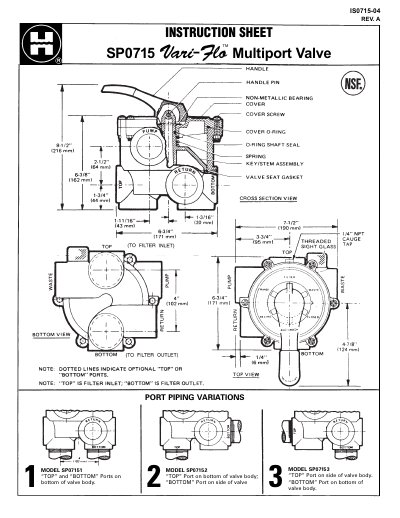

This document provides an instruction sheet for the Hayward SP0715 Vari-Flo Multiport Valve. It includes a cross-section view with part identification and dimensions, as well as descriptions of port piping variations for different models (SP07151, SP07152, SP07153).
The guide outlines the functions of various valve positions such as Filter Pump, Backwash, Rinse, Waste, Closed, and Recirculate. It also offers general instructions on installation, including piping stops and sealing methods, along with specific steps for winterizing and servicing or disassembling the valve.
| Valve Diameter (Top View) | 6-3/8" (162 mm) |
|---|
Depress and rotate the valve handle to any 'in-between' position on the index hubs.
It allows vacuuming directly to waste or draining the pool by lowering the water level.
