Hayward SM1700T/1900T High-Rate Sand Filter Owner's Manual

This document is an instruction manual for installation, operation, and parts. It provides basic safety precautions and describes the features and characteristics of the product.

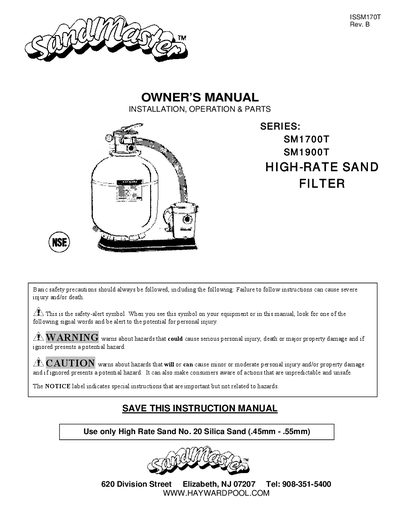

Hayward SM1700T/1900T High-Rate Sand Filter Owner's Manual - cover page
Brand
SandMaster
Category
Other
Document type
User Manual
Language
English
Pages
8
File format
PDF
File size
492 KB
Published
11 July, 2012
Updated
28 September, 2023
MD5 checksum
00188D5CF0A70B1C7671DBC70E8AAE21
PDF
Hayward SM1700T/1900T High-Rate Sand Filter Owner's Manual PDF

About this manual

This manual covers the installation, operation, and maintenance of the Hayward SM1700T and SM1900T high-rate sand filters. It details safety precautions regarding suction entrapment and hazardous pressure, as well as electrical grounding requirements. The document explains how the filter works using special filter sand to remove dirt particles from pool water.

What's inside

  • Safety Precautions
  • Suction Entrapment Hazard
  • Hazardous Pressure
  • Installation
  • Loading Sand Media
  • Assemble Filter Control Valve
  • Control Valve Operation
  • How It Works

Specifications

Filter MediaHigh Rate Sand No. 20 Silica Sand (.45mm - .55mm)
Maximum System Pressure40 PSI
Maximum Installation Height6 feet above pool water level

Frequently asked questions

What type of sand should be used?

You must use High Rate Sand No. 20 Silica Sand with a grain size of .45mm to .55mm.

What is the maximum operating pressure?

The circulation system must never be operated at more than 40 PSI.

How often should suction outlet covers be replaced?

The cover or grate should be inspected frequently and replaced at least every ten years.
