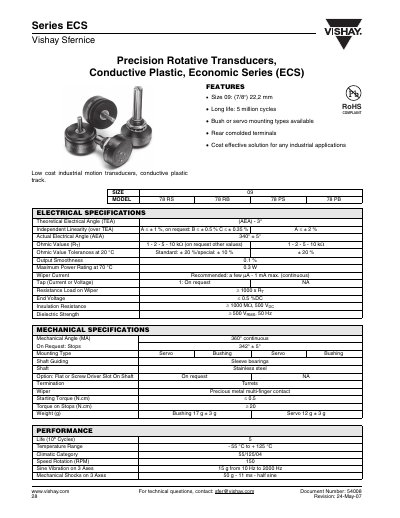

This document is the product manual of Vishay Sfernice Precision Rotative Transducers, Conductive Plastic, Economic Series (ECS). It mainly introduces the features and characteristics of this series of products.
This document provides technical specifications for the Vishay Sfernice ECS series, a line of low-cost industrial motion transducers utilizing a conductive plastic track. The series is designed for Size 09 (7/8") applications and offers a long life of 5 million cycles with rear comolded terminals.
| Size | Size 09: (7/8") 22,2 mm |
|---|---|
| Life | 5 million cycles |
| Mounting Types | Servo or Bushing |
| Actual Electrical Angle | 340° ± 5° |
| Ohmic Values | 1 - 2 - 5 - 10 k Ω |
| Output Smoothness | 0.1 % |
| Maximum Power Rating | 0.3 W at 70 °C |
| Temperature Range | - 55 °C to + 125 °C |
| Sine Vibration | 15 g from 10 Hz to 2000 Hz |
The ECS series is available in Servo and Bushing mounting types.
The maximum power rating is 0.3 W at 70°C.
