This product is an industrial gas spring, with the model number GS-22-VA. Its features are that it can be customized with different exhaust methods, extension strokes, seals, and stop rings, and can be equipped with different connection methods.

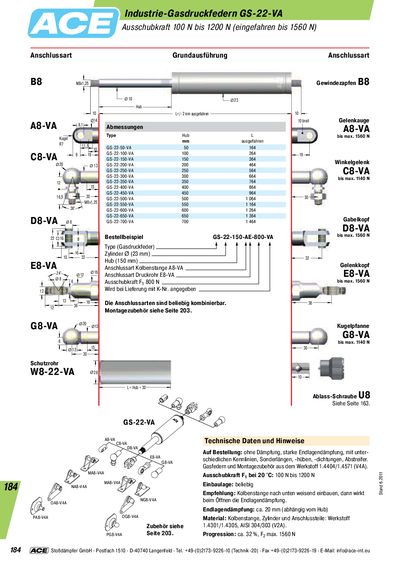

This document provides technical specifications for the Stoßdämpfer GmbH GS-22-VA series of gas springs. It details various models ranging from GS-22-50-VA to GS-22-700-VA, specifying their stroke lengths and maximum extension forces. The data includes information on connection types, mounting accessories, and material composition. This manual is written in German.
| Extension Force Range | 100N bis 1200 N |
|---|---|
| Maximum Extension Force | 1560 N |
| Progression | ca. 32 % |
| Material (Rod/Cylinder) | Werkstoff 1.4301/1.4305 |
Yes, the connection types are freely combinable.
The extension force ranges from 100 N to a maximum of 1560 N.
It is recommended to install the piston rod pointing downwards so that end-stop damping acts when opening.
The end-stop damping provides approximately 20 mm of travel.
