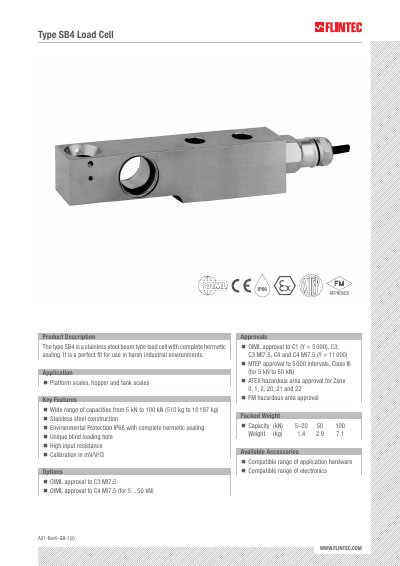

The document introduces the SB4 stainless steel beam type load cell from FLINTEC, which has complete hermetic sealing and is suitable for harsh industrial environments. The product has a wide range of capacities, stainless steel construction, IP68 environmental protection rating, high input resistance, and can be calibrated in mV/V/Ω. It is suitable for platform scales, hopper and tank scales, etc. The product has obtained OIML, NTEP, ATEX, and FM approvals.
This document provides technical data for the Flintec SB4 load cell, covering various capacity models including 5, 10, 20, 50, and 100 kN. The load cells are constructed from stainless steel 17-4 PH and feature complete hermetic sealing with an IP68/IP69K protection rating.
The datasheet details performance characteristics such as accuracy class according to OIML R60, temperature effects on output and sensitivity, and non-linearity. It also includes a table of dimensions and mounting specifications for each model, along with cable details.
| Protection Rating | IP68 (up to 2 m water depth) / IP69K |
|---|---|
| Cable Length | 3m for SB4-5 kN/10 kN/20 kN |
| Cable Length | 45m for SB4-50 kN/100 kN |
| Excitation Voltage | 5...15 V |
| Operating Temperature Range | -40...+80 C |
The maximum capacity is 100 kN.
The compensated temperature range is -10 to +40 degrees Celsius.
The maximum excitation voltage is 15 V.
