NORELEM 23052 Split Rigid Coupling Datasheet

Norelem 23052 rigid couplings product introduction

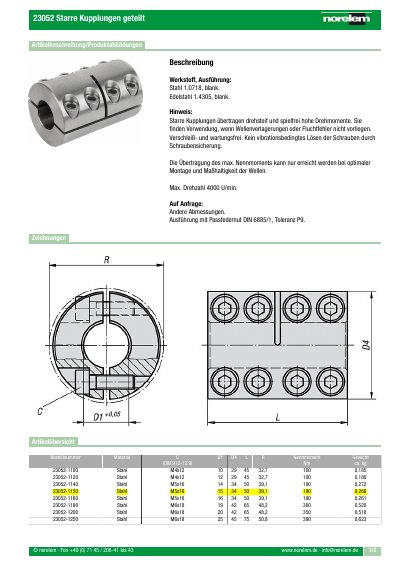

NORELEM 23052 Split Rigid Coupling Datasheet - cover page
Brand
NORELEM
Document type
Datasheet
Language
German
Pages
2
File format
PDF
File size
191 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
9777B32D9538C470ECD80EAC86966883
PDF
NORELEM 23052 Split Rigid Coupling Datasheet PDF

About this manual

This document provides technical details for the NORELEM 23052 series of split rigid couplings. These components are designed to transmit high torque with zero backlash and torsional stiffness, suitable for applications where shaft misalignment or positioning errors do not exist.

The datasheet lists available materials including steel (1.0718) and stainless steel (1.4305), along with specific dimensions, maximum rated torques, weights, and part numbers for various sizes ranging from M4 to M6 screws. This manual is written in German.

What's inside

  • Beschreibung
  • Werkstoff, Ausführung
  • Hinweis
  • Max. Drehzahl
  • Bestellnummer Material

Specifications

Material optionsSteel 1.0718, Stainless Steel 1.4305
Maximum speed4000 rpm
Torque transmission characteristicHigh torque, torsionally stiff, backlash-free

Frequently asked questions

What is the maximum operating speed for these couplings?

The maximum rotational speed is 4000 rpm.

What is the maximum rotational speed for this coupling?

The maximum rated speed is 4000 revolutions per minute.

How much torque can model 23052-1200 transmit?

Model 23052-1200 transmits a maximum rated torque of 350 Nm.

What is the weight of model 23052-2250?

The weight of model 23052-2250 is approximately 0.623 kg.

Download PDF (191 KB)
