This product is a three-axis rotary pump that can be used to transfer lubricating oil. The working temperature range is 15-70℃, the flow rate range is 2000-75L/min, the pressure range is 16-16o bar, and the speed is 1450rpm.

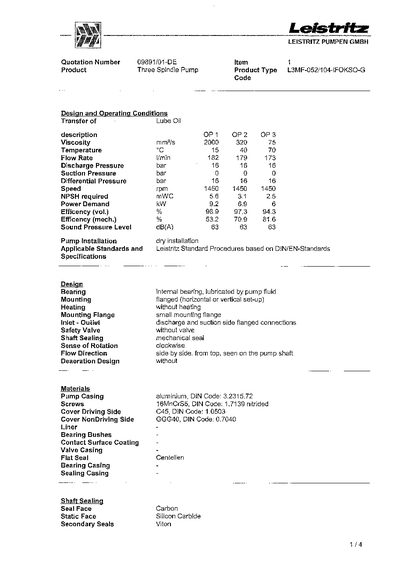

This document provides technical specifications and quotation details for two models of the Leistritz Three Spindle Pump series: L3MF-052/104-IFOKSO-G and L3MF-060/096-IFOKSO-G. The pumps are designed for the transfer of lube oil under specific design and operating conditions, including defined viscosity ranges, temperatures, flow rates, and discharge pressures.
The document outlines key mechanical features such as internal fluid-lubricated bearings, mechanical shaft sealing with carbon faces, and flanged connections compliant with SAE standards. It also lists the materials used for various pump components, including aluminium casings and stainless steel parts, along with painting specifications and certification details.
| Product Type | Three Spindle Pump |
|---|---|
| Viscosity (OP 1) | ISO VG 2000 mm²/s |
| Flow Rate (OP 1) | 182 Ymin |
| Discharge Pressure | 16 bar |
| Speed | 1450 rpm |
| Pump Casing Material | Aluminium, DIN Code: 3.2315.72 |
| Shaft Sealing Face Material | Carbon |
| Discharge Flange (Model L3MF-052) | SAE; 3000 PSI; 1 1/2" |
The pumps are manufactured by LEISTRITZ PUMPEN GMBH.
The shaft sealing is manufactured by John Crane, Type 58U.
No, the Pump Driver is not included in the Scope of Supply.
