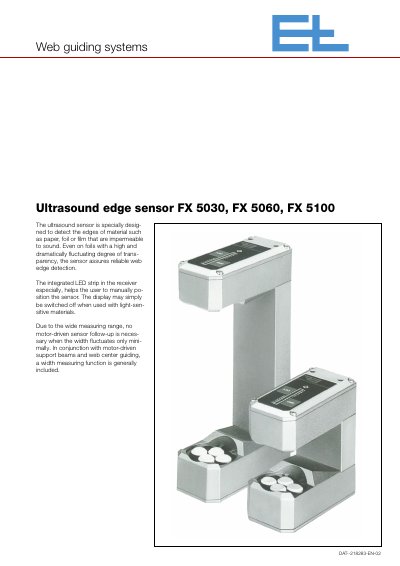

The document describes the Ultrasound edge sensor FX 5030, FX 5060, and FX 5100, which are specially designed ultrasound sensors for detecting the edges of materials such as paper, foil, or film that are impermeable to sound. The sensor ensures reliable web edge detection even on foils with a high and dramatically fluctuating degree of transparency. The integrated LED strip in the receiver helps the user to manually position the sensor. The display can be switched off when used with light-sensitive materials. The wide measuring range eliminates the need for motor-driven sensor follow-up when the width fluctuates only minimally. A width measuring function is generally included in conjunction with motor-driven support beams and web center guiding.
The FX series ultrasound edge sensor is designed to detect the edges of materials such as paper, foil, or film that are impermeable to sound. It ensures reliable web edge detection even on foils with high transparency and fluctuating degrees of transparency.
These sensors feature an integrated LED strip for manual positioning and can have their display switched off when used with light-sensitive materials. The wide measuring range allows the sensor to operate without motor-driven follow-up when width fluctuations are minimal.
| Supply voltage nominal value | 24 V DC |
|---|---|
| Permissible supply voltage range | 20 - 30 V DC (including ripple) |
| Power consumption display ON | ca. 4,0 W |
| Power consumption display OFF | ca. 2.5 W |
| Transmitter frequency | 200 kHz modulated |
| Measuring range | ± 10 mm |
| Measuring accuracy | 0.1 mm |
| Ambient temperature range | 10 ºC to + 50 ºC |
| Protection class | max. IP 65 with suitable connector inserted |
The sensor is specially designed to detect the edges of material such as paper, foil or film that are impermeable to sound.
The display may simply be switched off when used with light-sensitive materials.
The web edge set position for the FX 5030 model is LW = 30 mm.
