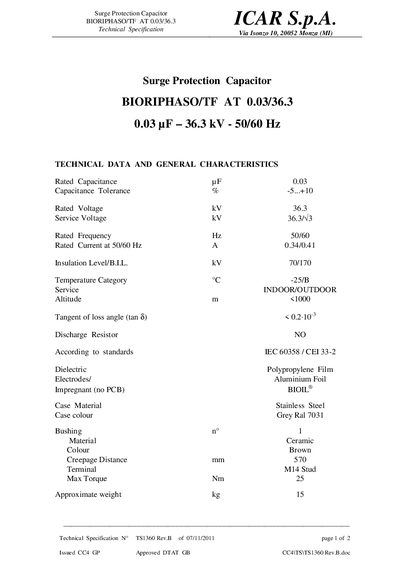

This document is about the technical specifications of BIORIPHASO/TF AT 0.03/36.3 0.03 µF – 36.3 kV - 50/60 Hz
This document provides technical data and general characteristics for the ICAR BIORIPHASO/TF AT series of surge protection capacitors. The device is rated at 0.03 µF capacitance with a voltage rating of 36.3 kV, designed for operation at 50/60 Hz frequencies.
| Rated Capacitance HF | 0.03 µF |
|---|---|
| Capacitance Tolerance | -5...+10 % |
| Rated Voltage | 36.3 kV |
| Service Voltage | 36.3/N3 kV |
| Rated Frequency | 50/60 Hz |
| Dielectric Material | Polypropylene Film |
| Electrodes Material | Aluminium Foil |
| Case Material | Stainless Steel |
| Insulation Level/B.LL. | 70/170 kV |
The capacitor does not have a discharge resistor.
No, the BIOIL® impregnant is biodegradable, non-toxic, and does not contain chlorinated substances.
A voltage test of 70 kV at 50 Hz for 60 seconds is performed between terminals.
