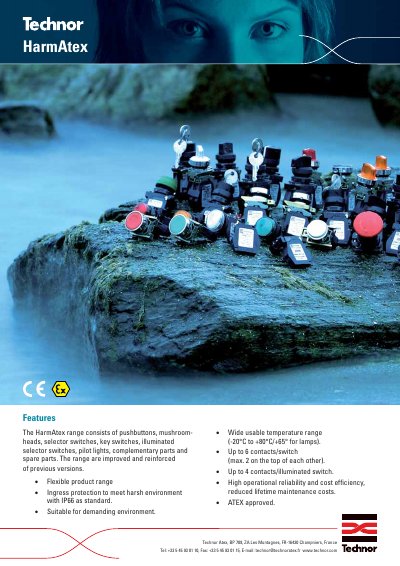

The HarmATex range consists of pushbuttons, mushroom-heads, selector switches, key switches, illuminated selector switches, pilot lights, complementary parts and spare parts. The range are improved and reinforced of previous versions. �� Flexible product range �� Ingress protection to meet harsh environment with IP66 as standard. �� Suitable for demanding environment. �� Wide usable temperature range (-20°C to +80°C/+65° for lamps). �� Up to 6 contacts/switch (max. 2 on the top of each other). �� Up to 4 contacts/illuminated switch. �� High operational reliability and cost efficiency, reduced lifetime maintenance costs. �� ATEX approved.
The Technor HarmAtex range consists of pushbuttons, mushroom-heads, selector switches, key switches, illuminated selector switches, pilot lights, and complementary parts. The series features improved and reinforced structures designed to meet harsh environmental requirements with an IP66 ingress protection rating as standard.
These devices are ATEX approved for use in demanding environments where explosive atmospheres may be present, such as the North Sea industry. They must be installed within certified enclosures (ATEX II 2 G or D or GD) and strictly follow standards EN 60079-14, EN 60079-17, and EN 50281-1-2. The product line supports a wide temperature range of -20°C to +80°C (with lamps rated up to +65°C) and offers high operational reliability.
| Ingress Protection Rating | IP66 |
|---|---|
| Operating Temperature Range | -20°C to +80°C (+65°C for lamps) |
| Panel Cut-out Diameter | Ø 22.5mm |
| Mounting Centres | 30x40mm (WxH) |
| Head Mechanical Durability | 5 million cycles |
| Contact Mechanical Durability | 1 million cycles |
| LED Service Life | 100,000 hours |
The range meets harsh environments with IP66 as standard.
A standard switch can have up to 6 contacts, with a maximum of 2 stacked on top of each other.
The devices operate from -20°C to +80°C, while lamps are rated up to +65°C.
The head has a mechanical durability of 5 million operating cycles.
