WGS 1+2 signal alarm is a signal alarm produced by Comax of Switzerland. It is suitable for use in harsh environments such as ships, mountain railways and ski resorts.

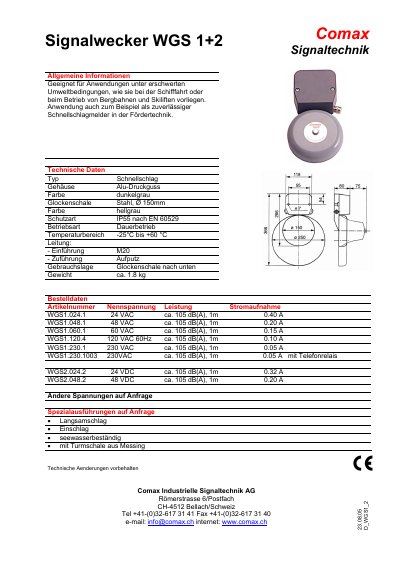

The document describes the Comax WGS 1+2 rapid strike alarm bell (Signalwecker), designed for applications under difficult environmental conditions such as shipping, cableway operation, and ski lifts. It is also applicable as a reliable quick-strike indicator in conveyor technology.
Technical specifications include an aluminum die-cast housing with a steel bell shell of approximately 150mm diameter. The device operates continuously within a temperature range of -25°C to +60 °C and features an IP55 protection rating according to EN 60529. This manual is written in German.
| Housing Material | Aluminum die-cast (Alu-Druckguss) |
|---|---|
| Bell Shell Diameter | approx. 150mm |
| Protection Rating | IP55 according to EN 60529 |
| Operating Mode | Continuous operation (Dauerbetrieb) |
| Temperature Range | -25°C to +60 °C |
| Weight | approx. 1.8 kg |
It is suitable for applications under difficult environmental conditions such as those found in shipping, cableway operations, and ski lifts.
The device operates within a temperature range of -25°C to +60 °C.
The weight of the unit is approximately 1.8 kg.
