Timmer-Pneumatik VFG-MAX-S220-3/8-NG- VFG-MAX-S220-1/2-NO technology data

This document describes the applications, functions, and technical specifications of the MAXI-Magnetventil - servogesteuert G3/8 - G2 2/2-Wege-Membran-Magnetventil.

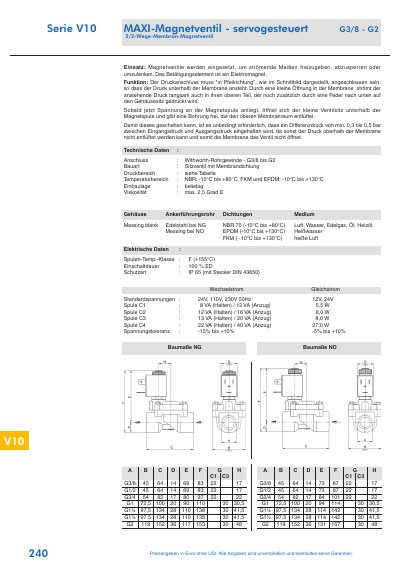

Timmer-Pneumatik VFG-MAX-S220-3/8-NG- VFG-MAX-S220-1/2-NO technology data - cover page
Brand
Timmer-Pneumatik
Category
Other Electronics
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
361 KB
Published
10 July, 2012
Updated
28 September, 2023
MD5 checksum
3EF080738CD1E4F7883E71ACA5D44D04
PDF
Timmer-Pneumatik VFG-MAX-S220-3/8-NG- VFG-MAX-S220-1/2-NO technology data PDF

About this manual

This document provides technical specifications for the Timmer-Pneumatik Serie V10 MAXI-Magnetventil (solenoid valve). It details the function, construction, and electrical data of servoperated 2/2-way membrane solenoid valves with thread sizes ranging from G3/8 to G2. This manual is written in German.

What's inside

  • Funktion
  • Technische Daten
  • Elektrische Daten
  • BaumaBe NG
  • Bestell-Nr. Typ NG
  • Bestell-Nr. Typ NO

Specifications

Thread SizeG3/8 bis G2
Construction TypeSitzventil mit Membrandichtung
Temperature Range (NBR)-10°C bis +80°C
Temperature Range (FKM/EPDM)-10°C bis +130°C
Minimum Differential Pressure0.3 to 0.5 bar

Frequently asked questions

What is the minimum pressure difference required between input and output for this valve to open?

A differential pressure of at least 0.3 bar must be maintained between the input and output pressures.

What are the standard AC voltages available for this solenoid valve coil?

Standard AC voltage options include 12V, 24V, 110V/50-60Hz, and 230V/50-60Hz.

Download PDF (361 KB)
