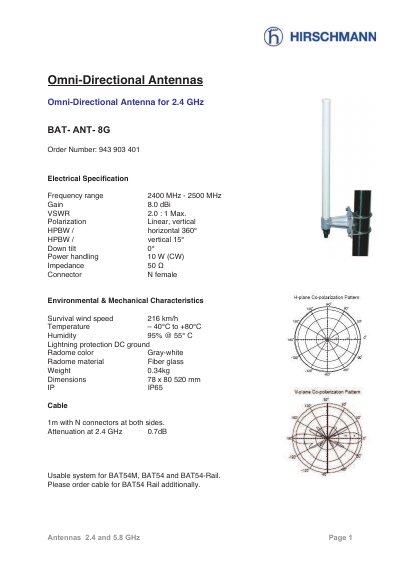

This document provides technical data for the Hirschmann BAT-ANT-8G, an omni-directional antenna designed for 2.4 GHz applications. Key electrical specifications include a frequency range of 2400 MHz to 2500 MHz, a gain of 8.0 dBi, and a maximum VSWR of 2.0:1. The antenna features a linear vertical polarization and an N female connector.
| Frequency range | 2400 MHz - 2500 MHz |
|---|---|
| Gain | 8.0 dBi |
| VSWR | 2.0: 1 Max. |
| Polarization | Linear, vertical |
| HPBW horizontal | 360° |
| HPBW vertical | 15° |
| Power handling | 10 W (CW) |
| Impedance | 500 |
| Connector | N female |
| Survival wind speed | 216 km/h |
| Temperature range | -40°C to +80°C |
| Humidity | 95% @ 55°C |
| Radome color | Gray-white |
| Radome material | Fiber glass |
| Weight | 0.34kg |
| Dimensions | 78 x 80 520 mm |
| IP Rating | IP65 |
| Cable length | 1m |
| Cable attenuation | 0.7dB at 2.4 GHz |
The antenna is usable for BAT54M, BAT54, and BAT54-Rail systems.
The antenna can handle 10 W of power continuously (CW).
