Belden BAT-ANT-N-6G-IP65 Omnidirectional Antenna Product Information

This document describes the BAT-ANT-N-6G-IP65 omnidirectional rod antenna for the 2.4 GHz band produced by Hirschmann Automation and Control GmbH. The antenna features a 6dBi antenna gain, N-type connectors, and an IP67 protection rating.

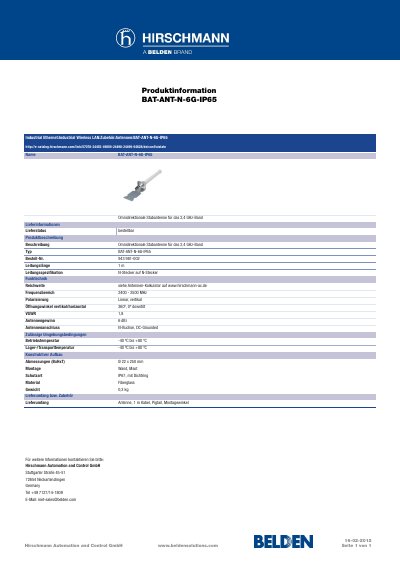

Belden BAT-ANT-N-6G-IP65 Omnidirectional Antenna Product Information - cover page
Brand
Hirschmann
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
90 KB
Published
10 July, 2012
Updated
29 September, 2023
MD5 checksum
783960C938E1A02A1BED362D185690B3
PDF
Belden BAT-ANT-N-6G-IP65 Omnidirectional Antenna Product Information PDF

About this manual

This document provides product information for the Belden BAT-ANT-N-6G-IP65, an omnidirectional whip antenna intended for use in the 2.4 GHz frequency band within industrial Ethernet and wireless LAN environments. The unit features a fiberglass construction with an IP67 protection rating, suitable for wall or mast mounting. This manual is written in German.

What's inside

  • Produktbeschreibung
  • Frequenzbereich
  • Polarisierung
  • Antennengewinn
  • Zulassige Umgebungsbedingungen
  • Konstruktiver Aufbau
  • Lieferumfang

Specifications

Frequency Range2400 - 2500 MHz
PolarizationLinear, vertical
VSWR1.8
Antenna Gain6 dBi
Connector TypeN-Stecker auf N-Stecker
Operating Temperature-40 °C bis +80 °C
Protection RatingIP67
MaterialFiberglass

Frequently asked questions

What frequency band is this antenna designed for?

The antenna is designed for the 2.4 GHz band, with a specified frequency range of 2400 - 2500 MHz.

What is the maximum operating temperature for this antenna?

The antenna can operate in temperatures ranging from -40 °C to +80 °C.

What is the total length of the cable included in the package?

The package includes an antenna with an 11m cable.
