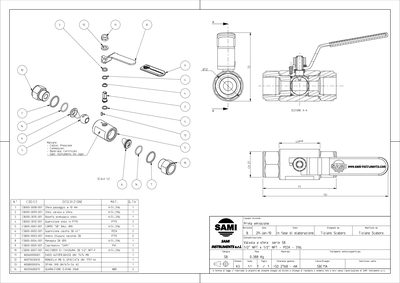

This document is a parts list and technical drawing revision for the Sami Instruments SBC11A ball valve. It specifies that the valve belongs to the SB series with NPT x NPT connections.
The document lists individual components including passage spheres, sealing elements made of PTFE and PEEK, and the main body constructed from AISI 316L stainless steel. This manual is written in Italian.
| Series | SB |
|---|---|
| Connections | 1/2"NPT x 1/2"NPT |
| Material Body | AISI 316L |
| Weight | 0.388 Kg |
The connections are specified as 1/2"NPT x 1/2"NPT.
The weight of the SB series valve is 0.388 Kg.
