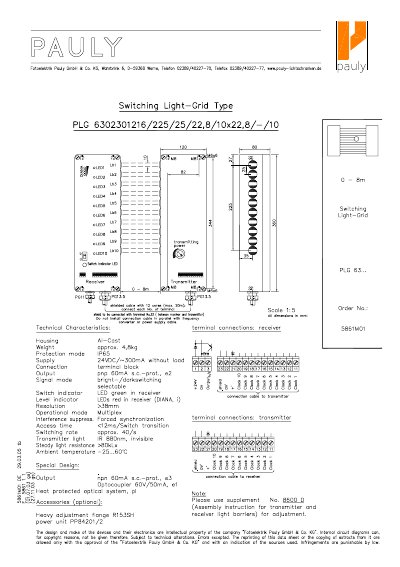

This document is a technical datasheet for the Pauly PLG 63... series of switching light barriers. It describes the device as a 'Switching Light—Grid Type' manufactured by Fotoelektrik Pauly GmbH & Co. KG.
The sheet provides specific technical characteristics including supply voltage (24VDC), output type (pnp or npn selectable), and resolution (>38mm). It also lists environmental conditions such as an ambient temperature range of -25...60°C and a steady light resistance of >80kLx.
| Product Type | Switching Light—Grid Type |
|---|---|
| Housing Material | Al—Cast |
| Weight | approx. 4,8kg |
| Protection Mode | IP65 |
| Supply Voltage | 24VDC/~300mA without load |
| Output Type | pnp 60mA s.c.—prot. |
| Resolution | >38mm |
| Operational Mode | Multiplex |
| Access Time | <12ms/Switch transition |
| Switching Rate | approx. 40/s |
| Transmitter Light | IR 880nm, invisible |
| Steady Light Resistance | >80kLx |
| Ambient Temperature | -25...60°C |
The supply is 24VDC with a maximum current of ~300mA without load.
The resolution is greater than 38mm.
The document states a switching rate of approximately 40 per second.
