This document is a product manual for pressure transmitters from Bopp&Reuther. It introduces the product features and characteristics.

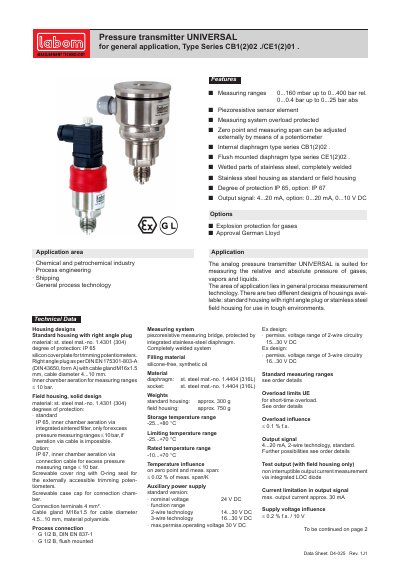

This document provides technical data for the Labom Universal pressure transmitter, available in two series: the internal diaphragm type CB1(2)02 and the flush mounted diaphragm type CE1(2)01. The transmitters are designed for measuring relative and absolute pressure of gases, vapors, and liquids in the chemical, petrochemical, and shipping industries.
| Measuring ranges | 0...160 mbar up to 0...400 bar rel. |
|---|---|
| Sensor element | Piezoresistive |
| Output signal | 4...20 mA, option: 0...20 mA, 0...10 V DC |
| Degree of protection | IP 65, option: IP 67 |
| Process connection | G 1/2 B, DIN EN 837-1 |
| Auxiliary power supply | 24V DC, function range 14...30 VDC (2-wire) |
| Linearity error | <0.3 %f.s. |
| Response time | <20ms |
The transmitter is suited for the chemical and petrochemical industry, process engineering, shipping, and general process technology.
The standard output signal is 4...20 mA using 2-wire technology.
