This is a MK brand MK 8053358 type capacitor, with rated capacitance of 16.00 uF, rated power of 1018 var, rated AC voltage of 450 V, rated frequency of 50 Hz, and rated current of 2.26 A.

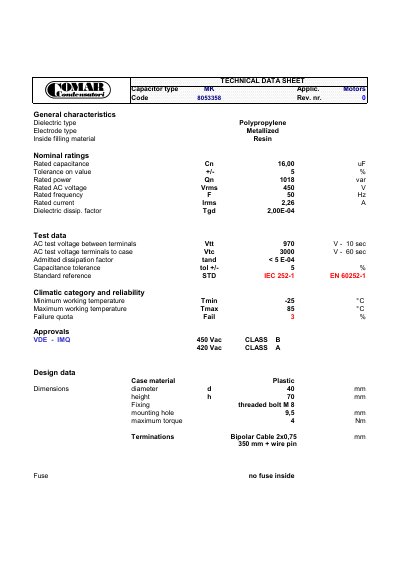

This document provides technical specifications for the COMAR MK type capacitor. It is a polypropylene dielectric component with metallized electrodes designed for motor applications.
The datasheet details nominal ratings including capacitance of 16,00 uF at 450 Vrms AC voltage and 50 Hz frequency. Mechanical design data includes dimensions of 40 mm diameter by 70 mm height and mounting specifications.
| Dielectric type | Polypropylene |
|---|---|
| Electrode type | Metallized |
| Nominal capacitance | 16,00 uF |
| Tolerance on value | +/- 5 % |
| Rated power | 1018 var |
| Rated AC voltage | 450 Vrms |
| Rated frequency | 50 Hz |
| Minimum working temperature | -25 °S |
| Maximum working temperature | 85 °S |
| Case material | Plastic |
This capacitor is intended for use with motors.
The rated capacitance is 16,00 uF.
The maximum working temperature is 85 °S.
