IGA 15 plus is a robust, digital, and accurate infrared thermometer with built-in data storage (750 measurement values) for non-contact temperature measurement of metals, ceramics, graphite, etc. with a measurement range of 250-1800°C. It features a laser pilot light as a targeting device, with the laser dot size corresponding to the size of the measurement field. The device includes a maximum value, minimum value, average temperature, and difference value display, as well as an acoustic alarm. The high-quality optics allow for measurement of small objects from 4mm, and even from 1.25mm with the additional lens. With a short detection time of 20ms, it can accurately measure fast-moving objects.

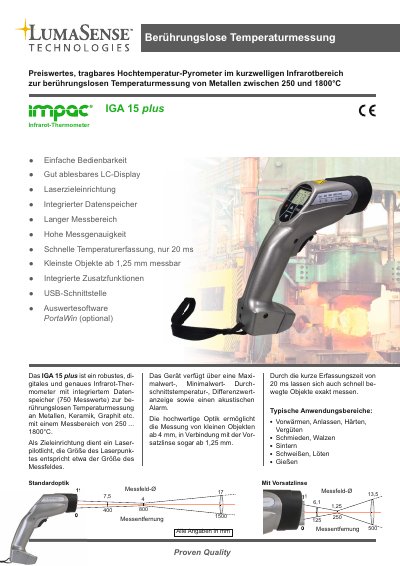

The LumaSense IGA 15 plus is a robust, digital, and precise infrared thermometer designed for non-contact temperature measurement of metals, ceramics, and graphite. It operates in the short-wave infrared range with a spectral range of 1.45 to 1.8 µm and utilizes an InGaAs detector. The device features a measurement range of 250 to 1800°C and includes a laser aiming point that corresponds to the size of the measurement field. This manual is written in German.
| Measurement Range | 250 ... 1800°C |
|---|---|
| Spectral Range | 1,45... 1,8 um |
| Detector | InGaAs-Detektor |
| Measurement Uncertainty | 0,6% from measured value |
| Repeatability | 0,2% from measured value |
| Capture Time | 20 ms |
| Emissivity | 10... 100% |
| Display Resolution | 0.1°C (°F) from 250...999.9°C |
| Data Storage | 750 measured values |
The device measures temperatures between 250 and 1800°C.
It uses an InGaAs detector operating in the short-wave infrared range.
The integrated data memory stores up to 750 measured values.
