amtec H-001.070.810N Technology Data

This document introduces a product called amtec Mutter H-001.070.810N, which is not available for individual purchase. It includes some components and provides detailed specifications and weight information.

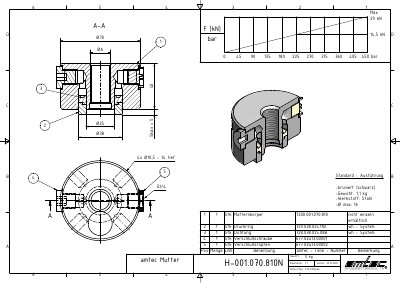

amtec H-001.070.810N Technology Data - cover page
Brand
amtec
Document type
Product Leaflet
Language
German
Pages
1
File format
PDF
File size
156 KB
Published
10 July, 2012
Updated
29 September, 2023
MD5 checksum
6F592695EB493E0DA102B2CD40B19A0C
PDF
amtec H-001.070.810N Technology Data PDF

About this manual

This document provides technical specifications for the amtec H-001.070.810N hydraulic fitting. The maximum load is rated at 29 kN, and the maximum pressure is 70 bar. The fitting is made of steel and weighs 1.1 kg.

The document also includes a parts list for the assembly. Key components include the nut (part number 200.001.070.810), pressure ring (29.038.025.11B), seal (28.038.025.08B), tightening screw (077.02013.00001), and tightening plug (077.02013.00002). This manual is written in German.

What's inside

  • Technical Data
  • Maximum Load
  • Maximum Pressure
  • Material
  • Weight
  • Parts List
  • Components

Specifications

Maximum Load29 kN
Weight1.1 kg
MaterialSteel

Frequently asked questions

What is the maximum force rating of the amtec H-001.070.810N?

The maximum force rating is 29 kN.

What is the weight of the amtec H-001.070.810N?

The weight is 1.1 kg.
