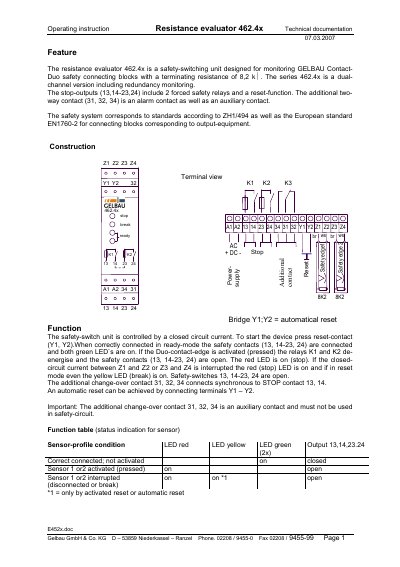

The resistance evaluator 462.4x is a safety-switching unit designed for monitoring GELBAU Contact- Duo safety connecting blocks with a terminating resistance of 8,2 kΩ. The series 462.4x is a dual- channel version including redundancy monitoring. The stop-outputs (13,14-23,24) include 2 forced safety relays and a reset-function. The additional two- way contact (31, 32, 34) is an alarm contact as well as an auxiliary contact. The safety system corresponds to standards according to ZH1/494 as well as the European standard EN1760-2 for connecting blocks corresponding to output-equipment.
The Gelbau 462.4x is a dual-channel safety-switching unit designed to monitor GELBAU Contact-Duo safety connecting blocks with a terminating resistance of 8.2 kΩ. The device features stop-outputs with forced safety relays and a reset function, as well as an additional two-way alarm contact. It operates according to standards EN 1760-2 and ZH 1/494.
| Terminating resistance | 8.2 kΩ |
|---|---|
| Protection class | IP20 |
| Dimensions | 22.5 x 100 x 110 mm |
| Weight | 300 g |
| Max load (AC) | 4 A |
| Max switching voltage (AC) | 250 V AC |
| Reaction time | max. 15 ms |
| Operation temperature | -20°C to +55°C |
The terminating resistance must be 8.2 kΩ.
The housing is ready for mounting on a 35 mm DIN rail according to DIN 50022.
Yes, an automatic reset can be achieved by connecting terminals Y1 and Y2.
