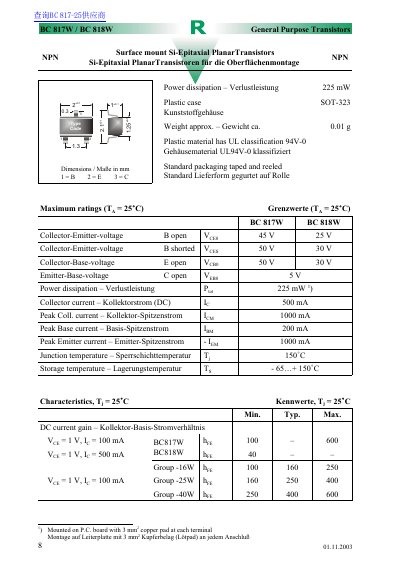

BC 817W / BC 818W are NPN Surface mount Si-Epitaxial PlanarTransistors with a maximum power dissipation of 225 mW and a plastic case SOT-323.
This document provides detailed specifications for the BC 817W and BC 818W NPN surface mount Si-Epitaxial Planar Transistors. It includes mounting instructions for P.C. boards and lists the plastic case material as SOT-323 with a UL classification of 94V-0.
The datasheet outlines maximum ratings such as a power dissipation of 225 mW and a junction temperature of 150 °C. It also details electrical characteristics including DC current gain groups (e.g., 16W, 25W, 40W), saturation voltages, and cutoff currents at various temperatures. This manual is written in German.
| Power dissipation | 225 mW |
|---|---|
| Junction temperature | 150 °C |
| Collector-Emitter voltage (B open) | 45 V |
| Collector current (DC) | 500 mA |
| Collector-Base capacitance | 6 pF |
The marking code for the BC 817W transistor is 6D.
The maximum total power dissipation is 225 mW.
The maximum junction temperature is 150 °C.
A 3 mm2 copper pad is required at each terminal.
