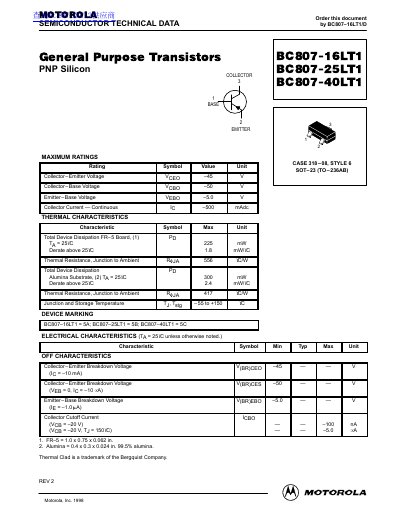

This data sheet provides information on maximum ratings, thermal characteristics, device marking, electrical characteristics, etc. for the BC807-16LT1.
This document provides technical data for the Motorola BC807 series of general-purpose NPN silicon transistors. It details maximum ratings such as collector-emitter voltage and continuous collector current, along with specific electrical characteristics including DC current gain and breakdown voltages for three variants: BC807-16LT1, BC807-25LT1, and BC807-40LT1.
The datasheet also includes comprehensive information on the SOT-23 surface mount package. It features recommended footprint dimensions for PCB layout, power dissipation calculations based on board materials like FR-5 or alumina substrates, and specific soldering precautions to prevent device failure during assembly.
| Collector-Emitter Voltage (VCEO) | -45 V |
|---|---|
| Collector Current (Continuous) | -500 mA |
| Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation (FR-5 Board) | 225 mW |
| DC Current Gain (BC807-16LT1) | 100 to 250 |
The maximum power dissipation is 225 mW at an ambient temperature of 25°C.
The soldering temperature and time shall not exceed 260°C for more than 10 seconds.
The document covers the BC807-16LT1, BC807-25LT1, and BC807-40LT1 models.
