The Busbox-PS2 is an amplifier with a Profibus interface designed for strain gauge sensors. It features user-friendly commissioning via a GSD file, a transmission range of up to 12 Mbit/s, and a 16-bit resolution.

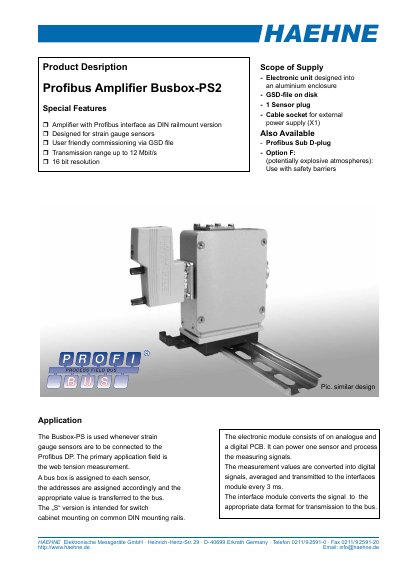

The HAEHNE Busbox-PS2 is an electronic unit designed for connecting strain gauge sensors to a Profibus DP network. It features a transmission range up to 12 Mbit/s and 16-bit resolution, allowing for user-friendly commissioning via a GSD file. The device is supplied in an aluminium enclosure with a DIN rail mount version and includes a sensor plug and cable socket for external power supply.
| Transmission range | up to 12 Mbit/s |
|---|---|
| Resolution | 16 bit |
| Power supply | 20.5...30 V |
| Max current | 150 mA |
| Signal range | -10.8 mV...0 mV...+10.8 mV |
| Nominal temperature range | +10...+60 °C |
| Weight | 175g |
The primary application field is the web tension measurement.
The measurement values are transmitted to the interfaces module every 3 ms.
