E62.R17-104C20 is a 100µF ±10% rated capacitance AC/DC capacitor for general use in power electronics, also suitable for non-sinusoidal voltages and currents. It conforms to IEC 1071/VDE 0560 part 120/121 standard.

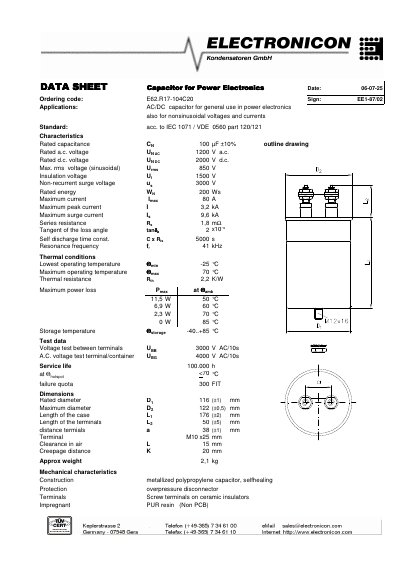

This document is a technical datasheet for the C2 E62.R17-104C20, a metallized polypropylene capacitor intended for use in general AC/DC power electronics. It supports both sinusoidal and nonsinusoidal voltages and currents, complying with IEC 1071 / VDE 0560 standards.
| Rated capacitance CN | 100 µF ±10% |
|---|---|
| Rated a.c. voltage UN AC | 1200 V |
| Rated d.c. voltage UN DC | 2000 V |
| Max. rms voltage (sinusoidal) Urms | 850 V |
| Insulation voltage Ui | 1500 V |
| Non-recurrent surge voltage us | 3000 V |
| Maximum current I max | 80 A |
| Tangent of the loss angle tan δ | 2 x10 -4 |
| Resonance frequency fr | 41 kHz |
| Maximum operating temperature ΘΘ ΘΘmax | 70 ° C |
The rated capacitance CN is 100 µF with a tolerance of ±10%.
It is constructed as a metallized polypropylene capacitor with self-healing properties.
