FA-FAS series dry air filters and air breathers are used for air suction on internal combustion engines, compressors, etc. or to vent closed tanks. Products can be equipped with flanges, gas, metric connections, etc.

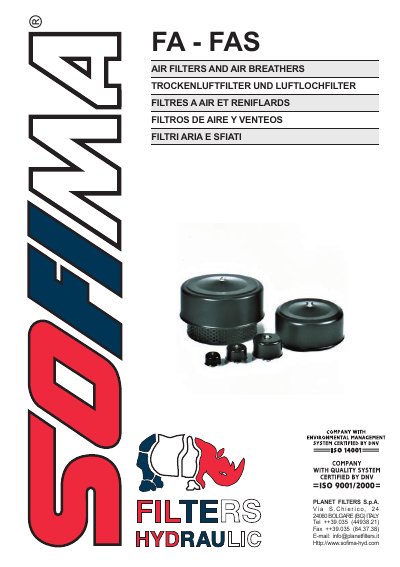

This document provides technical specifications for the SOFIMA FA and FAS series of dry air filters and air breathers. These components are designed for use in motor engines, compressors, and for venting tanks or closed containers. The product line offers various connection options including flanged, gas (UNI 338), metric (UNI 4356), and clamp connections.
| Cover Material | Painted or zinc plated steel |
|---|---|
| Connections Material | Painted or zinc plated steel, or aluminium |
| Internal Parts Material | Painted or zinc plated steel |
| Standard Filtering Media | velvet mesh 35, impregnated paper 20 |
| Available Connection Types | Flanged, gas (UNI 338), metric (UNI 4356) or clamp connections |
They are used for air suction on motor engines, compressors, etc., or to breathe tanks and closed containers.
Standard options include velvet mesh 35 and impregnated paper 20.
Yes, special executions are available upon request.
